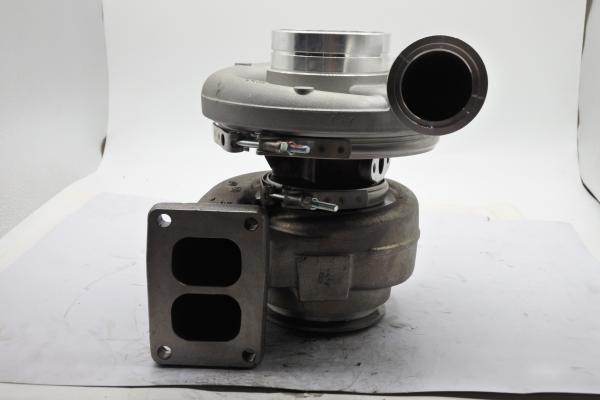

D12D HX52 EC360B Diesel Excavator 3599996 20488006 Turbocharger Spare Parts

Product parameters

We have been focused on this field for more than 12 years, with good quality and competitive price! Our company provides parts for almost all brands of hydraulic crushers. Sealing kit, diaphragm, piston, chisel, upper and lower bushing, rod pin bolt, side bolt, control valve, front, cylinder, rear, accumulator, charger kit, gas cylinder, shock absorber, etc.

Symptom: There is a metal friction sound
Phenomenon: The exhaust emits black smoke, the power drops, and the supercharger has abnormal noise.
Cause:
1. If there is a metal friction sound, it is caused by excessive wear of the supercharger rotor bearing or thrust bearing, and the friction between the impeller and the supercharger shell.
2. If it is not a metal friction sound, but an air flow sound, it is due to the rotation sound generated by the high-speed rotation of the supercharger rotor, or the air leakage phenomenon caused by poor connection at the intake and exhaust interfaces.
Treatment:
(1) The former should be repaired by replacing the damaged spare parts according to the wear situation.
2. The latter should be carefully distinguished and addressed in a targeted manner.
Bearing damage
Phenomenon: the supercharger bearing is damaged, the engine power drops, the oil consumption is high, black smoke is emitted, and the supercharger cannot work in severe cases.
Cause:
1. Lubriing oil pressure and flow are insufficient.
Insufficient supply of lubriing oil to the supercharger journal and thrust bearing;
b. Insufficient lubriing oil to keep the rotor journal and bearings afloat;
c. The booster is running at high speed and the lubriing oil is not supplied in time.
2. Debris or sediment enters the lubriion system.
3. Oxidative deterioration of engine oil.
a. Diesel engine oil is overheated, and too much gas escapes between the piston and the cylinder wall;
b. Cooling water leaks into the oil;
c. Improper selection of oil, and failure to change oil regularly as required.
Treatment:
1. Check whether the lubriing oil pressure is normal and whether the amount of oil meets the requirements.
2. According to the requirements of the regulations, replace the lubriing oil regularly and ensure that the lubriing oil is clean.
3. In strict accordance with the requirements of the regulations, the use of lubriing oil, not mixed.
4. The engine should be avoided from working under high temperature conditions and maintain the normal working temperature of the engine.

FAQ

Guangzhou Wanxinlong Construction Machinery Parts Co., Ltd. is a company specializing in construction machinery accessories. Our main business is construction machinery travel motors, slewing motors, slewing bearings, main pumps, travel/slewing gearboxes, radiators, oil coolers, turbochargers Compressors, hydraulic cylinders, displays, controllers, wiring harnesses, crankshafts, cylinder heads, cylinder blocks, throttle motors, solenoid valves, safety valves, switches, sensors, pump components, gearbox components, engine components, chassis components, mufflers, etc. Accessories. With years of industry experience and technical strength, we are able to provide customers with high-quality and diversified products and services.

Our customers are loed in Asia, Africa, America, Europe, Southeast Asia and other countries. We have been committed to providing customers with high-quality products and services, and have won wide acclaim and trust. We always adhere to the business philosophy of "customer first, quality first, honest management, and common development" to meet the needs of customers as our goal, constantly innovate and improve, and continuously improve the quality and level of products and services.

We have a professional sales and technical team that can provide customers with professional, timely and thoughtful pre-sales and after-sales services to help customers solve various problems and difficulties. We focus on establishing long-term cooperative relationships with our customers to achieve the goal of common development and win-win results.

If you need construction machinery parts, please contact us, we will serve you wholeheartedly!
